Aplikasi Sederhana Input Data (Visual Studio)

How Are You Mates?
Pada kesempatan kali ini saya akan memposting aplikasi sederhana input data menggunakan Visual Studio.

• DESKRIPSI:

Aplikasi sederhana Input Data. Aplikasi sederhana ini dibuat menggunakan visual studio code behind VB Net. Aplikasi ini sudah dapat menyimpan/terkoneksi database dengan MS.Acces. Aplikasi ini dibuat agar memudahkan suatu instansi menginput data. Pada kali ini saya membuat contoh menginput data Dosen disebuah perguruan tinggi.

• SCREENSHOOT

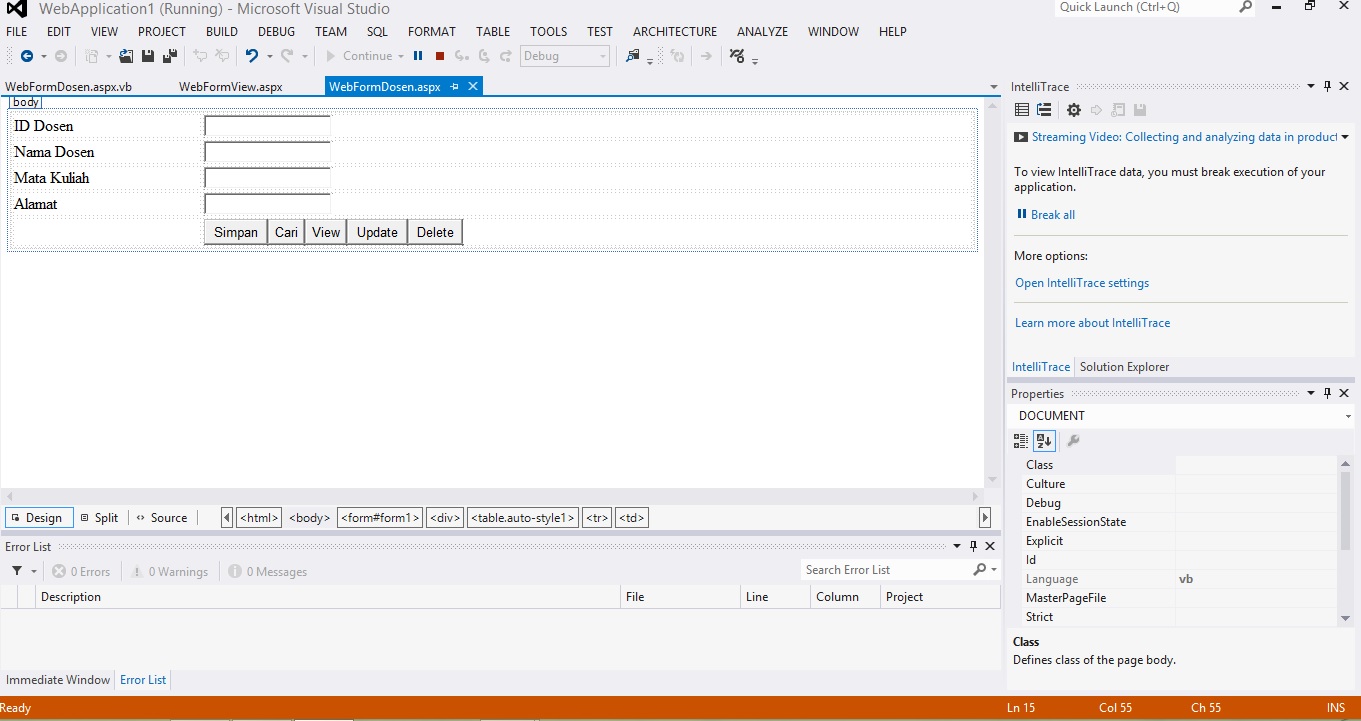

Tampilan design awal

Tampilan WebFormView

Tampilan MS Acces

Tampilan setelah di RUN

Mengisi database

Tampilan database sudah terkoneksi ke MS Acces

• SOURCE CODE:

Imports System.Data
Imports System.Data.OleDb

Public Class WebFormApplication1
    Inherits System.Web.UI.Page
    Dim Koneksi As String = "Provider=Microsoft.ACE.OLEDB.12.0;Data Source=C:\Users\ASUS X550Z\Documents\TabelDosen.accdb"
    Dim objekKoneksi As New OleDb.OleDbConnection(Koneksi)
    Dim Xreader As OleDb.OleDbDataReader
    Protected Sub Page_Load(ByVal sender As Object, ByVal e As System.EventArgs) Handles Me.Load

    End Sub

(Button Simpan)

Protected Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
        objekKoneksi.Open()
        Dim tambah As String = "INSERT INTO TabelDosen values('" & TextBox1.Text & "','" & TextBox2.Text & "','" & TextBox3.Text & "','" & TextBox4.Text & "') "
        Dim oCmd = New OleDbCommand(tambah, objekKoneksi)
        oCmd.ExecuteNonQuery()
        objekKoneksi.Close()
        MsgBox("Sukses")

    End Sub

(Button Cari)

Protected Sub Button2_Click(sender As Object, e As EventArgs) Handles Button2.Click
        If Not Len(TextBox1.Text) = 0 Then
            objekKoneksi.Close()
            objekKoneksi.Open()
            Dim ocmd As New OleDb.OleDbCommand("SELECT * FROM TabelDosen where IDDosen='" + TextBox1.Text + "'", objekKoneksi)

            Xreader = ocmd.ExecuteReader()
            If Xreader.HasRows Then
                Xreader.Read()
                TextBox1.Text = Xreader("IDDosen")
                TextBox2.Text = Xreader("NamaDosen")
                TextBox3.Text = Xreader("MataKuliah")
                TextBox4.Text = Xreader("Alamat")
            Else
                TextBox1.Text = "ID Tidak ada"
                Exit Sub
            End If
            Xreader.Close()

        End If
    End Sub

(Button View)

Protected Sub Button3_Click(sender As Object, e As EventArgs) Handles Button3.Click
        Response.Redirect("WebFormView.aspx")
    End Sub

(Button Update)

Protected Sub Button4_Click(sender As Object, e As EventArgs) Handles Button4.Click
        objekKoneksi.Open()
        Dim Rubah As String = "UPDATE TabelDosen set MataKuliah='" + TextBox3.Text + "' where IDDosen='" + Trim(TextBox1.Text) + "'"
        Dim oCmd = New OleDbCommand(Rubah, objekKoneksi)
        oCmd.ExecuteNonQuery()
        objekKoneksi.Close()
        MsgBox("Sukses")
    End Sub

(Button Delete)

Protected Sub Button5_Click(sender As Object, e As EventArgs) Handles Button5.Click
        TextBox1.Text = ""
        TextBox2.Text = ""
        TextBox3.Text = ""
        TextBox4.Text = ""
        TextBox1.Focus()
    End Sub
End Class
